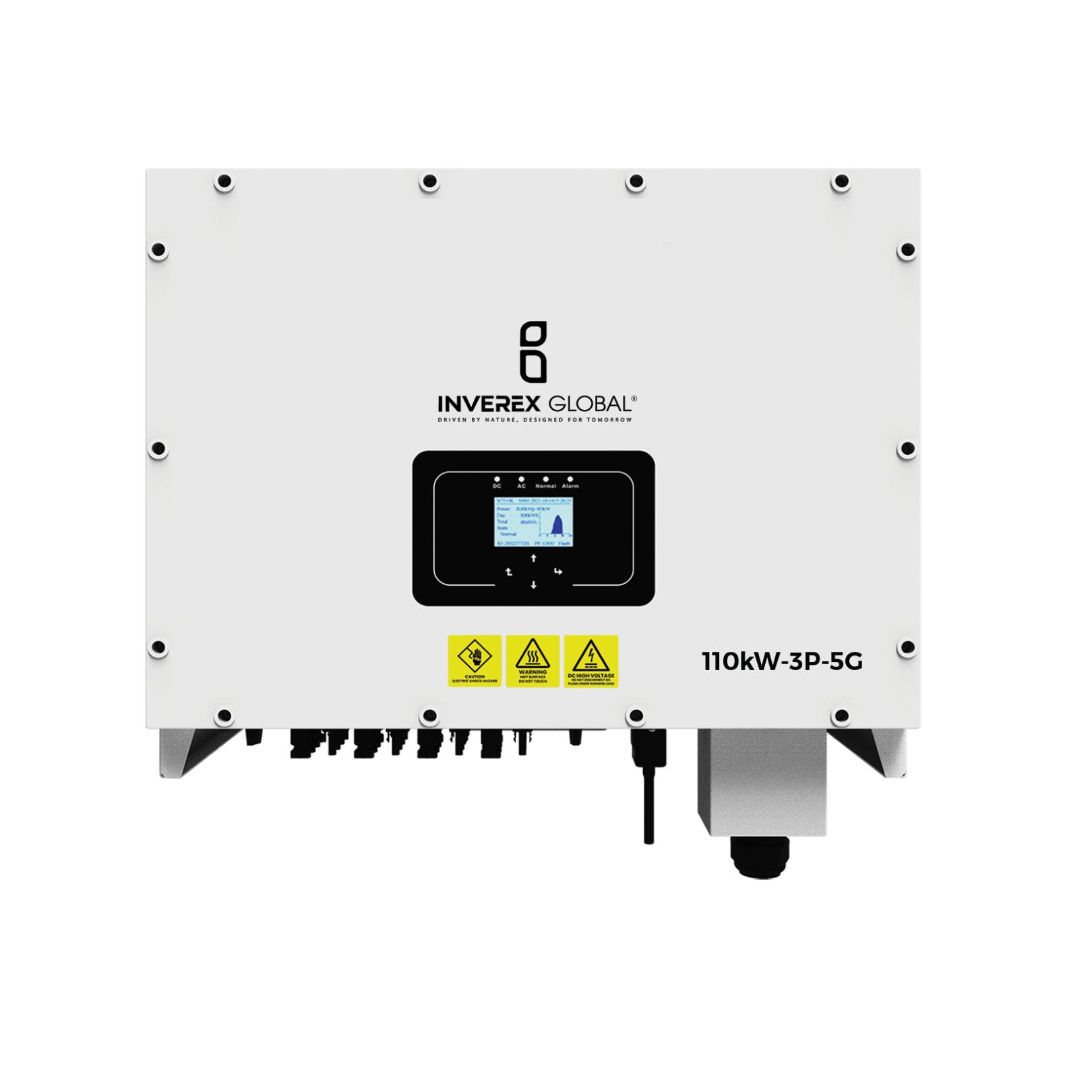

INVEREX GLOBAL – 110kW-3P ON GRID (DEYE) INVERTER
The pinnacle of utility-scale solar conversion, this 110kW three-phase on-grid inverter is built for the largest solar power plants. It features an unparalleled six independent MPPT trackers for maximum energy harvest, a robust IP65 enclosure, and a 10-year warranty for ultimate long-term reliability.
Additional information
Description
Description
Inverex Nitrox 110kW Three-Phase On-Grid Solar Inverter
The Inverex Nitrox 110kW inverter represents the peak of performance for utility-scale solar power generation. Engineered to be the heart of the largest solar farms, it delivers an enormous 110kW of stable three-phase power. Its most distinguished feature is the inclusion of six independent MPPT trackers, each supporting four strings. This advanced design provides unprecedented flexibility, allowing EPCs and developers to optimize energy yield across vast, complex, and varied solar fields with unmatched precision. Housed in a durable IP65-rated enclosure and equipped with a full array of communication ports for sophisticated grid management, the Nitrox 110kW is the ultimate solution for maximizing the performance and profitability of large-scale solar assets.
Key Features
- Ultimate Utility-Scale Power: An immense 110kW output capacity specifically designed for the rigorous demands of the largest solar power plants.
- Unmatched 6-MPPT Design: Features six independent MPPT trackers, each handling four strings (6/4+4+4+4+4+4), offering the highest level of design flexibility and energy optimization available for complex utility-scale projects.
- Robust and Reliable: The rugged IP65-rated housing provides superior protection against all environmental conditions, ensuring maximum uptime and a long service life in the field.
- Engineered for Maximum Yield: The wide MPPT voltage range (200V-850V) is optimized for long, high-efficiency string configurations that reduce Balance-of-System (BOS) costs and maximize energy harvest.
- Grid-Level Management: A complete suite of communication interfaces (RS485, RS232, Wi-Fi, LAN) enables sophisticated remote control, monitoring, and integration with SCADA systems.
- Decade-Long Investment Security: Your large-scale solar project is protected by a comprehensive 10-year manufacturer warranty, ensuring reliable performance for years to come.
Technical Specifications
| Model | IG-3P-5G-110kW-ON GRID (DEYE) |
| Rated Power | 110kW |
| Phase | Three Phase |
| MPPT Trackers / Strings per MPPT | 6 / 4+4+4+4+4+4 |
| MPPT Voltage Range (VDC) | 200V – 850V |
| Max. PV Array Power | 121 kVa |
| Protection Degree | IP65 |
| Communication Interface | RS485/RS232/WIFI/LAN |
| Product Weight (kg) | 81 KG |
| Operating Temperature | -25°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
