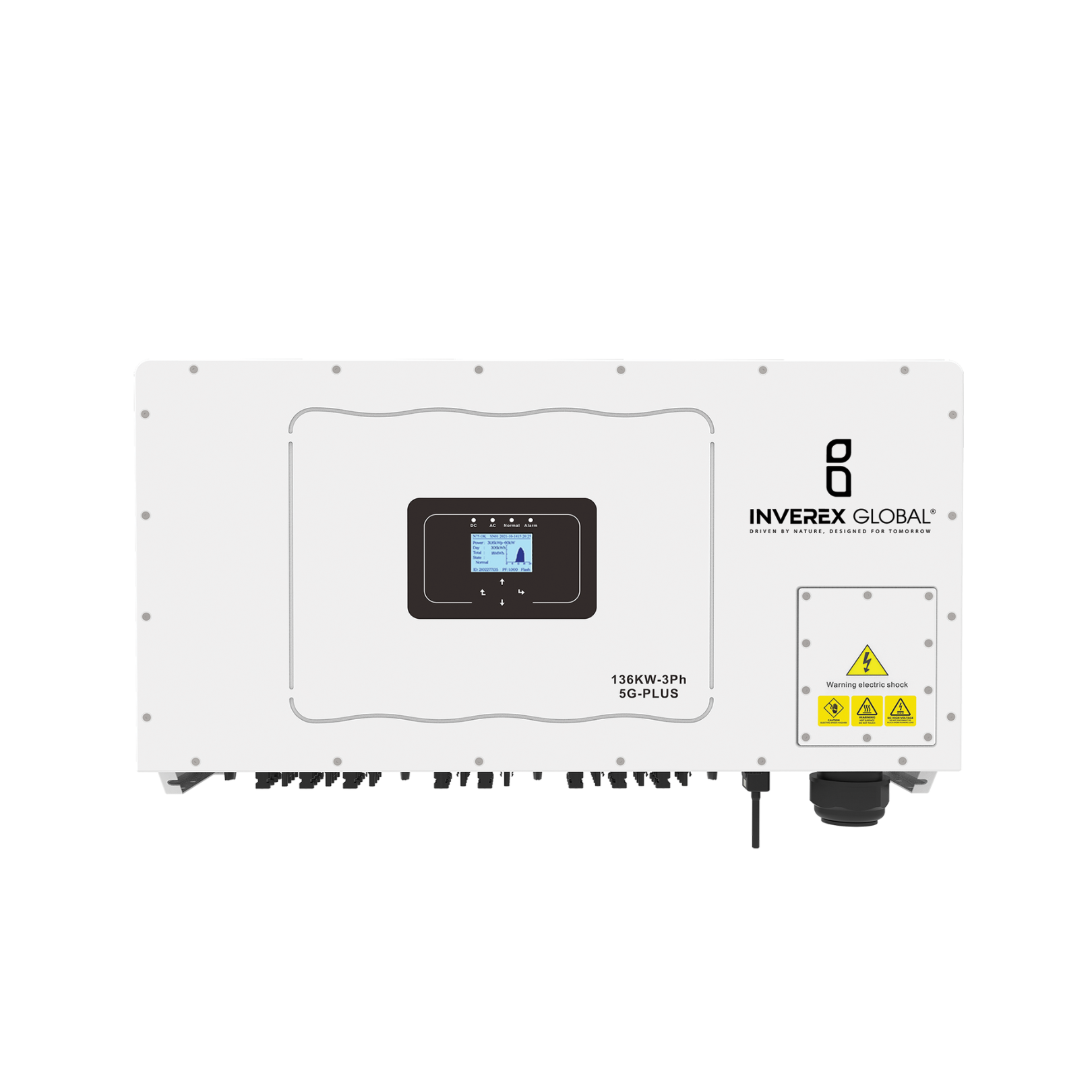

INVEREX GLOBAL – 136kW-3P ON GRID (DEYE) INVERTER
The flagship 136kW three-phase on-grid inverter from Inverex, engineered for utility-scale solar farms. Featuring an unparalleled eight independent MPPT trackers for maximum energy harvest, a robust IP65 design, and a 10-year warranty, it’s the ultimate solution for large-scale power generation.
Additional information
Description
Description
Inverex Nitrox 136kW Three-Phase On-Grid Solar Inverter
The Inverex Nitrox 136kW represents the apex of solar power conversion technology, engineered specifically for the most demanding utility-scale solar power plants. As the flagship model, it delivers a colossal 136kW of stable three-phase power, designed to maximize energy yield and accelerate the return on investment for large-scale solar assets. Its most revolutionary feature is the integration of eight independent MPPT trackers, providing unprecedented design flexibility to optimize performance across vast and topographically challenging solar fields. Housed in a rugged IP65 enclosure and equipped for advanced grid management, the Nitrox 136kW is the definitive choice for developers who require maximum power, control, and long-term reliability.
Key Features
- Flagship 136kW Capacity: A massive power output designed to handle the immense energy demands of large-scale commercial and utility solar power plants.
- Unprecedented 8-MPPT Design: Features eight independent MPPT trackers, each handling four strings, offering the highest level of system design flexibility and optimized yield for the largest and most complex solar fields.
- Utility-Grade Durability: The robust IP65-rated enclosure ensures maximum uptime and a long service life by providing complete protection against all demanding environmental conditions.
- High-Voltage Efficiency: A wide 200V-1000V MPPT range allows for longer and more cost-effective string designs, significantly reducing Balance-of-System (BOS) costs and boosting overall plant efficiency.
- Advanced Grid Integration: A complete suite of communication ports (RS485, RS232, Wi-Fi, LAN) enables seamless integration with SCADA systems for sophisticated remote control and grid management.
- 10-Year Investment Guarantee: A comprehensive decade-long warranty secures your substantial capital investment and ensures reliable, long-term performance.
Technical Specifications
| Model | IG-3P-5G-136kW-ON GRID (DEYE) |
| Rated Power | 136kW |
| Phase | Three Phase |
| MPPT Trackers / Strings per MPPT | 8 / 4+4+4+4+4+4+4+4 |
| MPPT Voltage Range (VDC) | 200V – 1000V |
| Max. PV Array Power | 136 kVa |
| Protection Degree | IP65 |
| Communication Interface | RS485/RS232/WIFI/LAN |
| Product Weight (kg) | 103 KG |
| Operating Temperature | -25°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
