INVEREX GLOBAL -BOS – A RACK – MOUNTED BATTERY (HV) (DEYE)
The ultimate high-voltage energy storage solution for commercial and industrial applications. The Inverex BOS-A is a modular, rack-mounted battery system that scales from 53.76kWh up to 161.28kWh. With an ultra-long >6000 cycle life, it’s built for demanding, large-scale performance.
Additional information
Description
Description

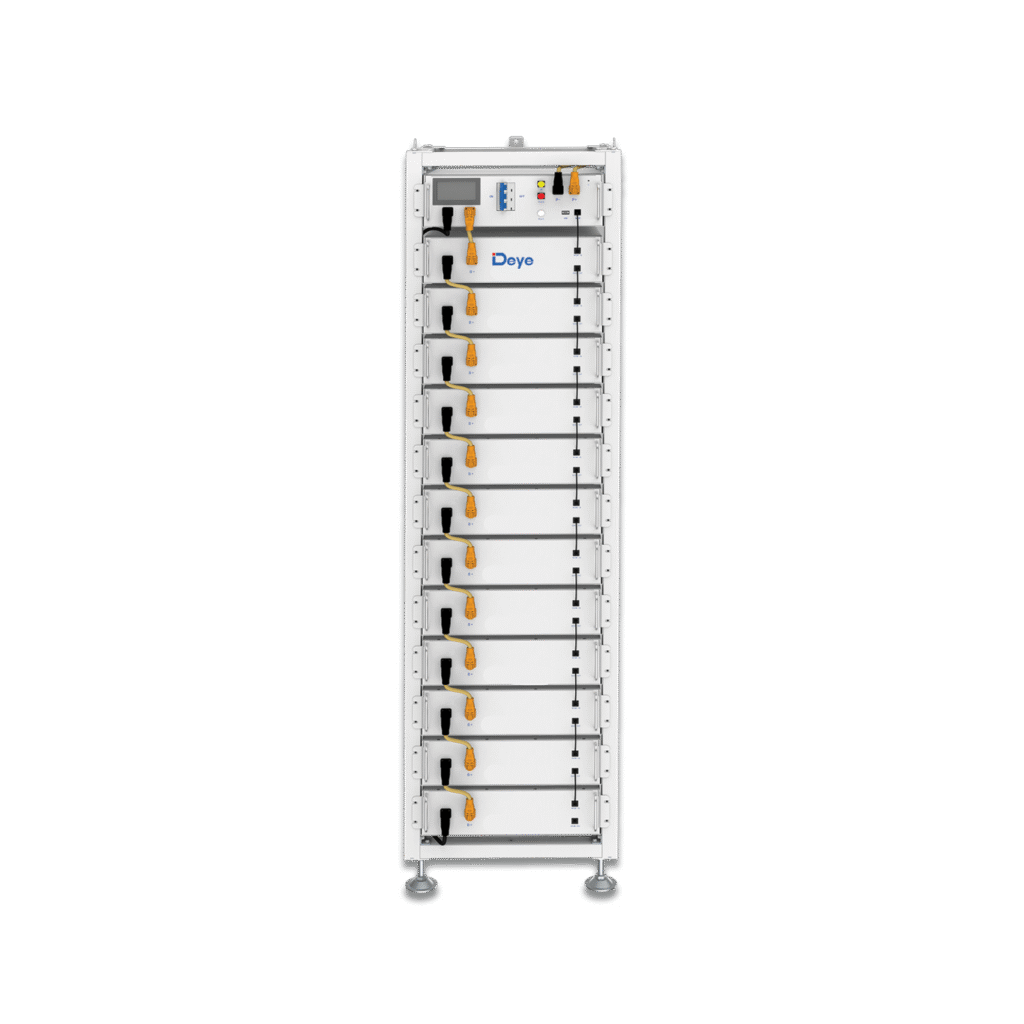

Inverex BOS-A High-Voltage (HV) Rack-Mounted Battery System
Engineered for the demands of large-scale commercial and industrial energy storage, the Inverex BOS-A is a fully integrated, high-voltage rack-mounted battery system. Its modular design allows for incredible flexibility, starting at a robust 53.76kWh and scaling up to 21 units in parallel for a massive total capacity of 161.28kWh. This makes it the ideal choice for businesses looking to optimize energy usage, ensure power continuity, and maximize their investment in renewable energy. Built with an exceptional lifecycle of over 6000 cycles and housed in a professional rack system, the BOS-A delivers reliable, long-term performance backed by a 5-year warranty.
Key Features
- Commercial High-Voltage Design: Operates at a high voltage (235.2V – 919.8V) for greater efficiency and compatibility with large-scale inverters.
- Massive Scalability: Start with a 53.76kWh system and expand by connecting up to 21 units in parallel for a total capacity of 161.28kWh.
- Ultra-Long Cycle Life: An exceptional lifecycle of over 6000 cycles ensures a reliable, long-term investment and low total cost of ownership.
- Professional Rack-Mounted System: Provides a clean, safe, and organized installation, simplifying maintenance and management.
- Advanced Communication: Integrated CAN 2.0 communication port allows for seamless integration with compatible inverters and Battery Management Systems (BMS).
- Robust Operating Range: Designed to perform reliably in a wide range of temperatures, from -20°C to +55°C.
Technical Specifications
| Model | IG-BOS-A High Voltage Rack-Mounted Battery |
| Energy (kWh) | 53.76 kWh to 161.28 kWh |
| Capacity (AH) | 200 AH |
| Operating Voltage (V) | 235.2V – 919.8V |
| Life Cycle | >6000 Cycles (25°C, 0.5C, 70% EOL) |
| Communication Port | CAN 2.0 |
| Maximum Parallel Capacity | 21 Units (161.28 kWh) |
| Operating Temperature | -20°C to +55°C |
| Product Weight (kg) | 558kg to 1586kg |
| Warranty | 5 Years (T&C Applied) |
