INVEREX GLOBAL – NITROX HYBRID (DEYE) MPPT INVERTER 12kw
A powerful 12kW three-phase hybrid inverter designed for commercial and large residential energy storage systems. It supports high-voltage batteries (160-700V), features dual MPPTs, and can be paralleled up to 10 units. A robust, IP65-rated inverter with a 10-year warranty.
Additional information
Description
Description

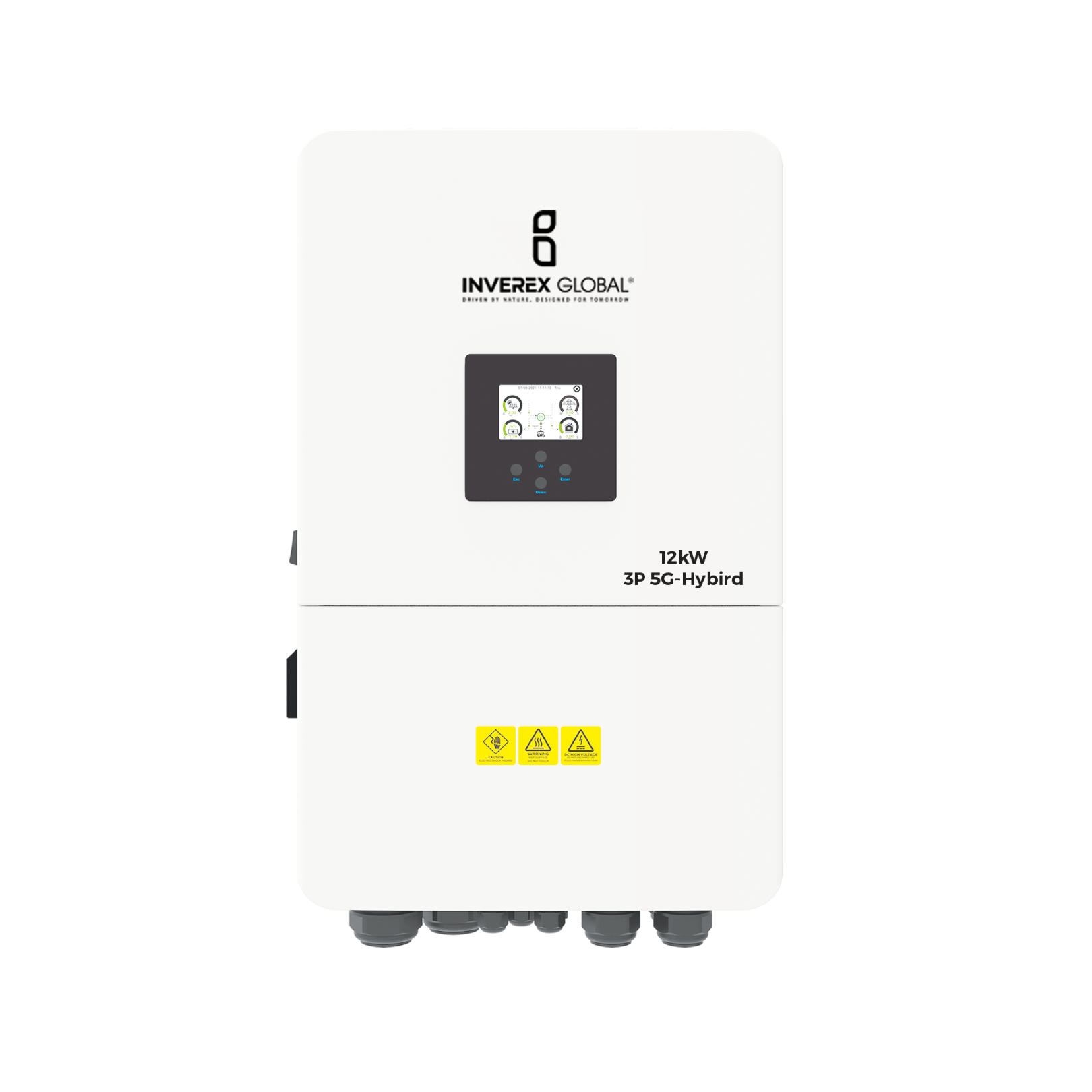

Inverex Nitrox 12kW Three-Phase High-Voltage Hybrid Inverter
The Inverex Nitrox 12kW is a formidable three-phase hybrid inverter that provides a powerful, flexible core for commercial and large residential energy storage systems. It delivers a substantial 12kW output and is engineered to work with modern, high-voltage battery banks (160-700V) for superior efficiency. With dual MPPT trackers to optimize a large 12,000W solar array and the capability to scale up to 10 units in parallel for a massive 120kW system, the Nitrox 12kW is built for both current needs and future expansion. Housed in a durable IP65 enclosure, it’s a smart, reliable, and high-performance investment protected by a 10-year warranty.
Key Features
- Powerful Three-Phase Output: Delivers a robust 12kW of stable three-phase power, ideal for large homes, workshops, and commercial properties.
- High-Voltage Hybrid System: Compatible with a wide range of high-voltage batteries (160-700V), leading to higher system efficiency and performance.
- Dual MPPT for Flexible Design: Two independent MPPT trackers allow for optimized energy harvesting from solar arrays with different orientations or panel types.
- Commercial-Scale Scalability: Connect up to 10 inverters in parallel to create a powerful 120kW system, ensuring you can meet growing energy demands.
- Smart BMS Integration: Automatically adapts its charging strategy to compatible Lithium-Ion batteries, ensuring seamless operation and maximizing battery lifespan.
- Robust All-Weather Design: The IP65-rated enclosure provides complete protection against dust and water, making it suitable for both indoor and outdoor installation.
- Decade-Long Peace of Mind: A comprehensive 10-year manufacturer warranty ensures your investment is protected for the long term.
Technical Specifications
| Model | IG-3P-5G-12kW-48v HYBRID MPPT (DEYE) |
| Rated Power | 12kW |
| Phase | Three Phase |
| Battery Type / Voltage | Lead Acid or Li-Ion / 160V-700V |
| Number of Battery Inputs | 1 |
| MPPT Trackers / Strings | 2 / 1+1 |
| MPPT Voltage Range (VDC) | 150V – 850V |
| Max. PV Array Power | 12,000 W |
| Max. Parallel Capacity | 10 Units |
| Protection Degree | IP65 |
| Communication Interface | WIFI/RS485/CAN |
| Product Weight (kg) | 35.2 KG |
| Operating Temperature | -40°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
