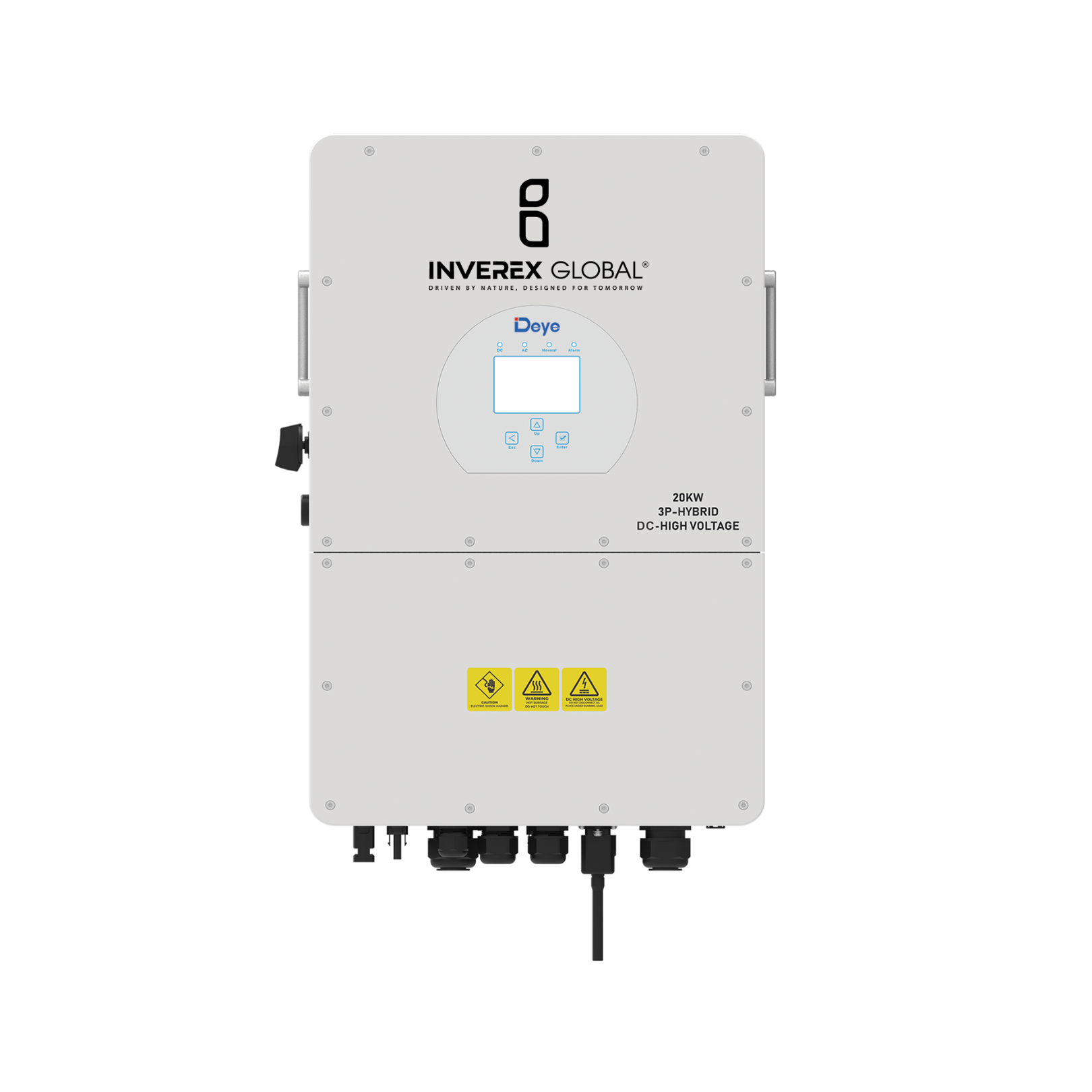

INVEREX GLOBAL – NITROX HYBRID (DEYE) MPPT INVERTER 20KW
A high-capacity 20kW three-phase hybrid inverter designed for significant commercial and industrial energy storage systems. Supports high-voltage batteries, features dual MPPTs for a 22kW solar array, and scales up to 10 units. A robust, IP65-rated inverter with a 10-year warranty.
Additional information
Description
Description
Inverex Nitrox 20kW Three-Phase High-Voltage Hybrid Inverter
The Inverex Nitrox 20kW is a top-tier hybrid inverter that provides a powerful and intelligent core for large-scale commercial energy storage. It delivers a substantial 20kW three-phase output and is engineered to manage a massive 22kW PV array, making it perfect for businesses focused on significant energy cost reduction, peak shaving, and critical load backup. By integrating seamlessly with modern high-voltage battery systems, it ensures maximum efficiency and performance. With its impressive scalability and robust, all-weather design, the Nitrox 20kW is a premier choice for a future-proof, high-return energy investment.
Key Features
- High-Capacity Hybrid Performance: Delivers a powerful 20kW three-phase output, ideal for managing the energy needs of large commercial facilities.
- High-Voltage Battery Ready: Optimized for modern, high-voltage battery systems (160-700V), ensuring higher efficiency and compatibility with the latest storage technology.
- Symmetrical Dual MPPTs: Features two independent MPPTs, each supporting two strings, to maximize energy harvest from large solar arrays up to 22kW.
- Massive System Scalability: Connect up to 10 units in parallel for a combined power capacity of 200kW, meeting the demands of the largest projects and future expansions.
- Intelligent Battery Management: Automatically adapts its charging strategy for Lithium-Ion batteries via BMS communication, ensuring plug-and-play simplicity and optimal battery health.
- Industrial-Grade Construction: The rugged IP65-rated enclosure provides complete protection against dust and moisture, ensuring reliable operation in any environment.
- 10-Year Investment Security: A comprehensive 10-year manufacturer warranty provides a decade of assurance and protects your commercial investment.
Technical Specifications
| Model | IG-3P-5G-20kW-48v HYBRID MPPT (DEYE) |
| Rated Power | 20kW |
| Phase | Three Phase |
| Battery Type / Voltage | Lead Acid or Li-Ion / 160V-700V |
| Number of Battery Inputs | 1 |
| MPPT Trackers / Strings | 2 / 2+2 |
| MPPT Voltage Range (VDC) | 150V – 850V |
| Max. PV Array Power | 22,000 W |
| Max. Parallel Capacity | 10 Units |
| Protection Degree | IP65 |
| Communication Interface | WIFI/RS485/CAN |
| Product Weight (kg) | 50.6 KG |
| Operating Temperature | -40°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
