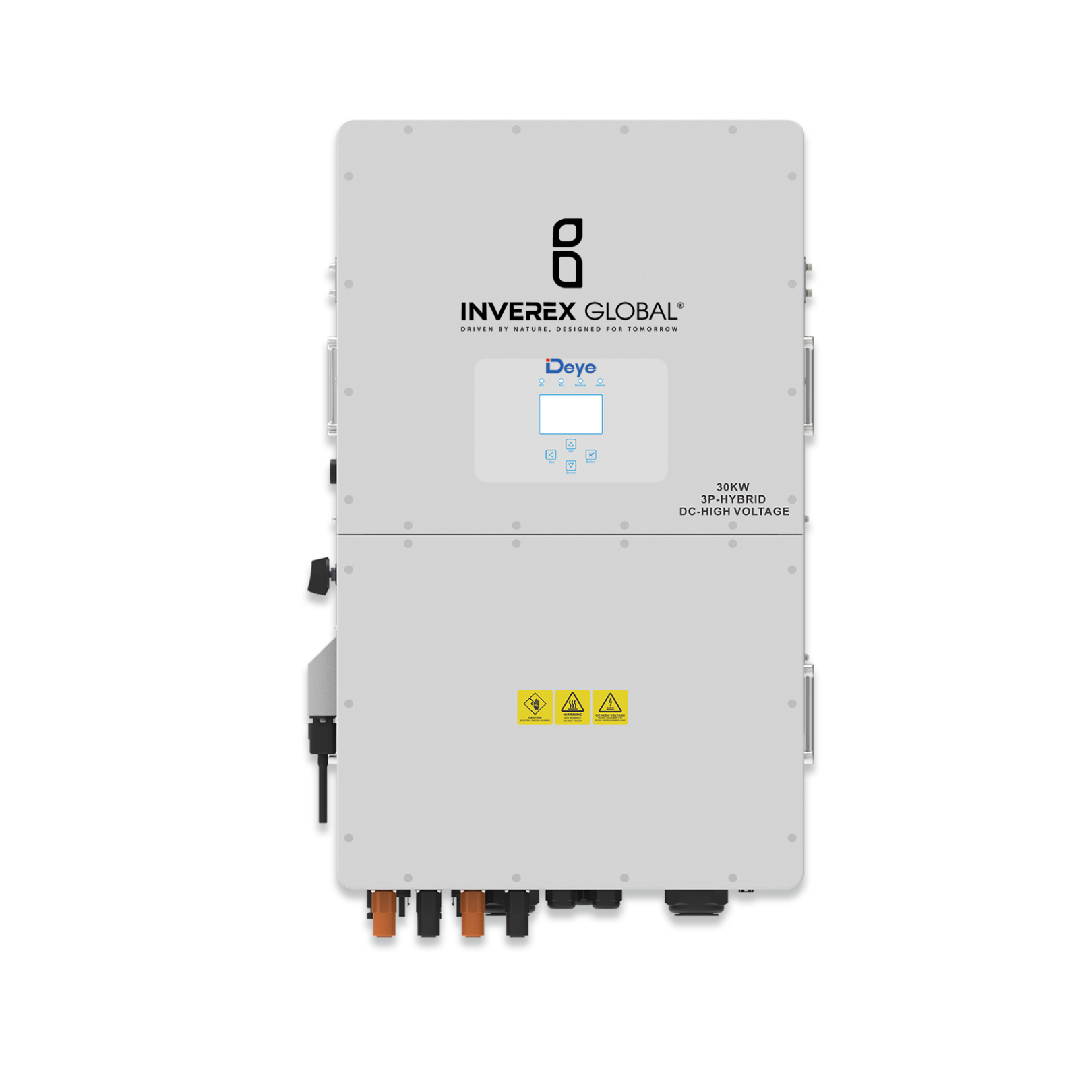

INVEREX GLOBAL – NITROX HYBRID (DEYE) MPPT INVERTER 30KW
A powerful 30kW three-phase hybrid inverter designed for commercial energy storage. Features high-voltage battery support, three independent MPPTs for optimal solar yield, and can be paralleled up to 10 units (300kW). A robust, IP65-rated solution backed by a 10-year warranty.
Additional information
Description
Description
Inverex Nitrox 30kW Three-Phase Hybrid Solar Inverter
The Inverex Nitrox 30kW is a premier hybrid inverter engineered for the demands of commercial and industrial-scale energy storage systems. It provides a substantial 30kW output and seamlessly integrates high-capacity solar generation (up to 33kW) with high-voltage battery banks. This makes it an ideal solution for businesses focused on peak shaving, maximizing self-consumption, or requiring reliable backup power for critical loads. With its advanced triple-MPPT design, massive scalability up to 10 units, and intelligent battery management, the Nitrox 30kW is a powerful and flexible platform for achieving energy security and long-term savings.
Key Features
- Commercial-Scale Hybrid Power: A significant 30kW output with full hybrid functionality to manage large-scale solar generation and battery storage.
- Dual High-Voltage Battery Inputs: Features two independent high-voltage (160-800V) battery inputs, allowing for large and flexible energy storage configurations.
- Triple-MPPT for Maximum Yield: Three independent MPPT trackers (3/2+2+2) provide superior design flexibility for large, complex commercial rooftops, ensuring maximum energy harvest.
- Massive Scalability: Easily scale your system by connecting up to 10 inverters in parallel for a combined power output of 300kW to meet future energy demands.
- Intelligent BMS Communication: Features self-adapting charging strategies for Lithium-Ion batteries, optimizing the performance and lifespan of your energy storage investment.
- Industrial-Grade Durability: Housed in a rugged IP65-rated enclosure to provide complete protection against dust and water in demanding environments.
- 10-Year Commercial Warranty: Your investment is secured with a full decade-long warranty, ensuring reliable performance and peace of mind.
Technical Specifications
| Model | IG-3P-30kW-HYBRID MPPT (DEYE) |
| Rated Power | 30kW |
| Phase | Three Phase |
| Battery Type / Voltage | Lead Acid or Li-Ion / 160V-800V |
| Number of Battery Inputs | 2 |
| MPPT Trackers / Strings | 3 / 2+2+2 |
| MPPT Voltage Range (VDC) | 150V – 850V |
| Max. PV Array Power | 33,000 W |
| Max. Parallel Capacity | 10 Units |
| Protection Degree | IP65 |
| Communication Interface | WIFI/RS485/CAN |
| Product Weight (kg) | 80 KG |
| Operating Temperature | -40°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
