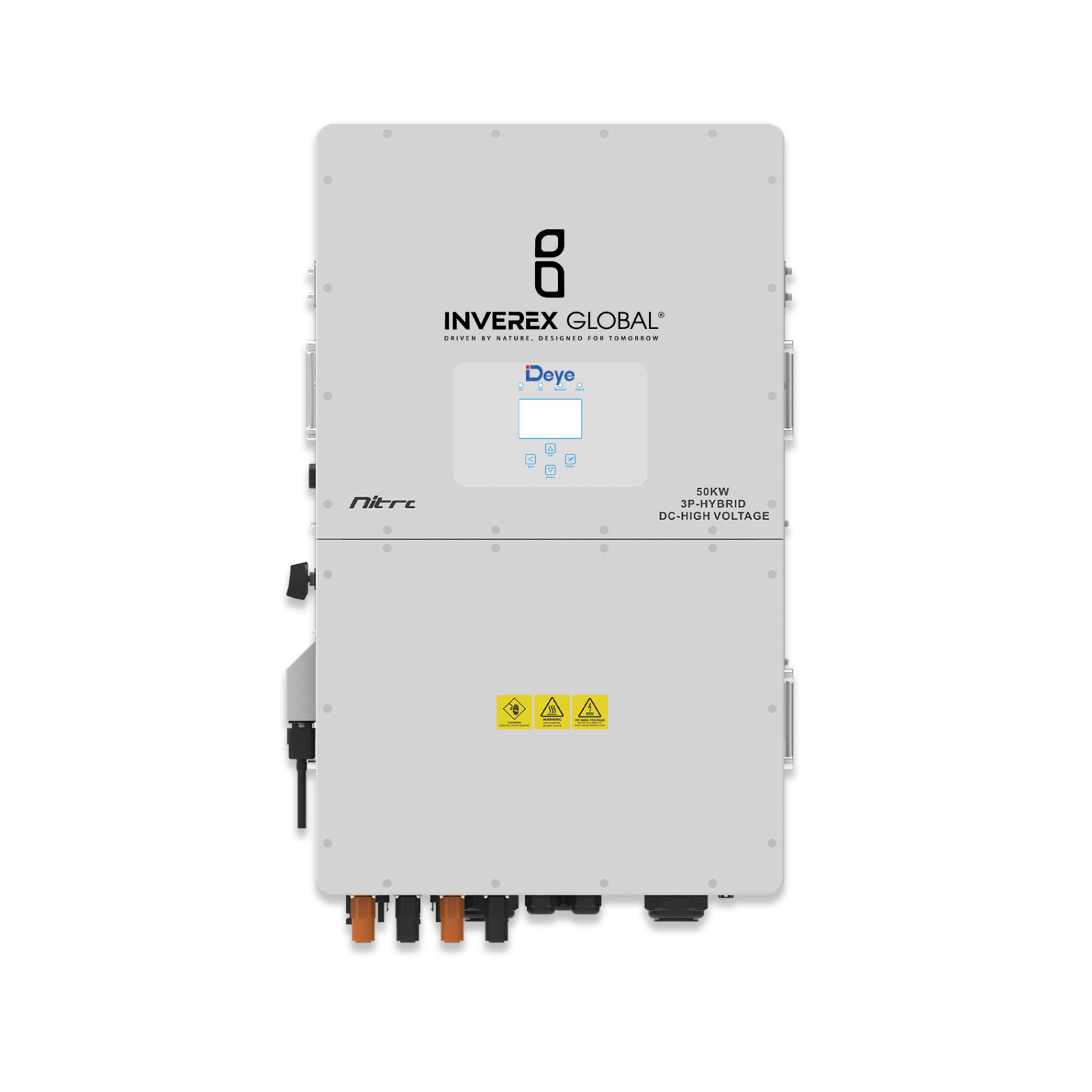

INVEREX GLOBAL – NITROX HYBRID (DEYE) MPPT INVERTER 50KW
The ultimate 50kW three-phase hybrid inverter for commercial and industrial energy storage. This powerhouse features high-voltage battery support, three independent MPPTs, and can be paralleled up to 10 units (500kW). A robust, IP65-rated solution backed by a 10-year warranty.
Additional information
Description
Description
Inverex Nitrox 50kW Three-Phase Hybrid Solar Inverter
The Inverex Nitrox 50kW is a groundbreaking hybrid inverter engineered to be the core of large-scale commercial and industrial energy storage systems. It provides the unique ability to combine massive solar generation (up to 55kW) with high-voltage battery banks, offering unparalleled control over your energy. This makes it the ultimate solution for businesses looking to implement peak shaving, load shifting, or secure backup power for mission-critical operations. Featuring three independent MPPTs and massive scalability up to 10 units in parallel, the Nitrox 50kW hybrid is a robust, future-proof platform for achieving energy independence and maximizing your return on investment.
Key Features
- Commercial-Grade Hybrid Power: A massive 50kW output with the flexibility to manage both solar generation and large-scale battery storage for commercial applications.
- Dual High-Voltage Battery Inputs: Features two independent battery inputs compatible with a wide voltage range (160-800V), allowing for enormous and flexible energy storage configurations.
- Advanced Triple-MPPT Design: Three independent MPPT trackers (3/2+2+2) provide exceptional design flexibility for large, complex commercial rooftops or ground-mount solar arrays.
- Massive Scalability: Connect up to 10 inverters in parallel for a staggering combined hybrid power output of 500kW, perfect for growing energy demands.
- Smart Battery Management: Includes self-adapting charging strategies for Lithium-Ion batteries, ensuring optimal performance and longevity of your energy storage assets.
- Built for Industrial Environments: A rugged IP65-rated housing provides complete protection against dust and water, ensuring reliable operation in demanding conditions.
- 10-Year Commercial Warranty: Your significant investment is protected by a comprehensive 10-year warranty, guaranteeing long-term performance and peace of mind.
Technical Specifications
| Model | IG-3P-50kW-HYBRID MPPT (DEYE) |
| Rated Power | 50kW |
| Phase | Three Phase |
| Battery Type / Voltage | Lead Acid or Li-Ion / 160V-800V |
| Number of Battery Inputs | 2 |
| MPPT Trackers / Strings | 3 / 2+2+2 |
| MPPT Voltage Range (VDC) | 150V – 850V |
| Max. PV Array Power | 55,000 W |
| Max. Parallel Capacity | 10 Units |
| Protection Degree | IP65 |
| Communication Interface | WIFI/RS485/CAN |
| Product Weight (kg) | 80 KG |
| Operating Temperature | -40°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
