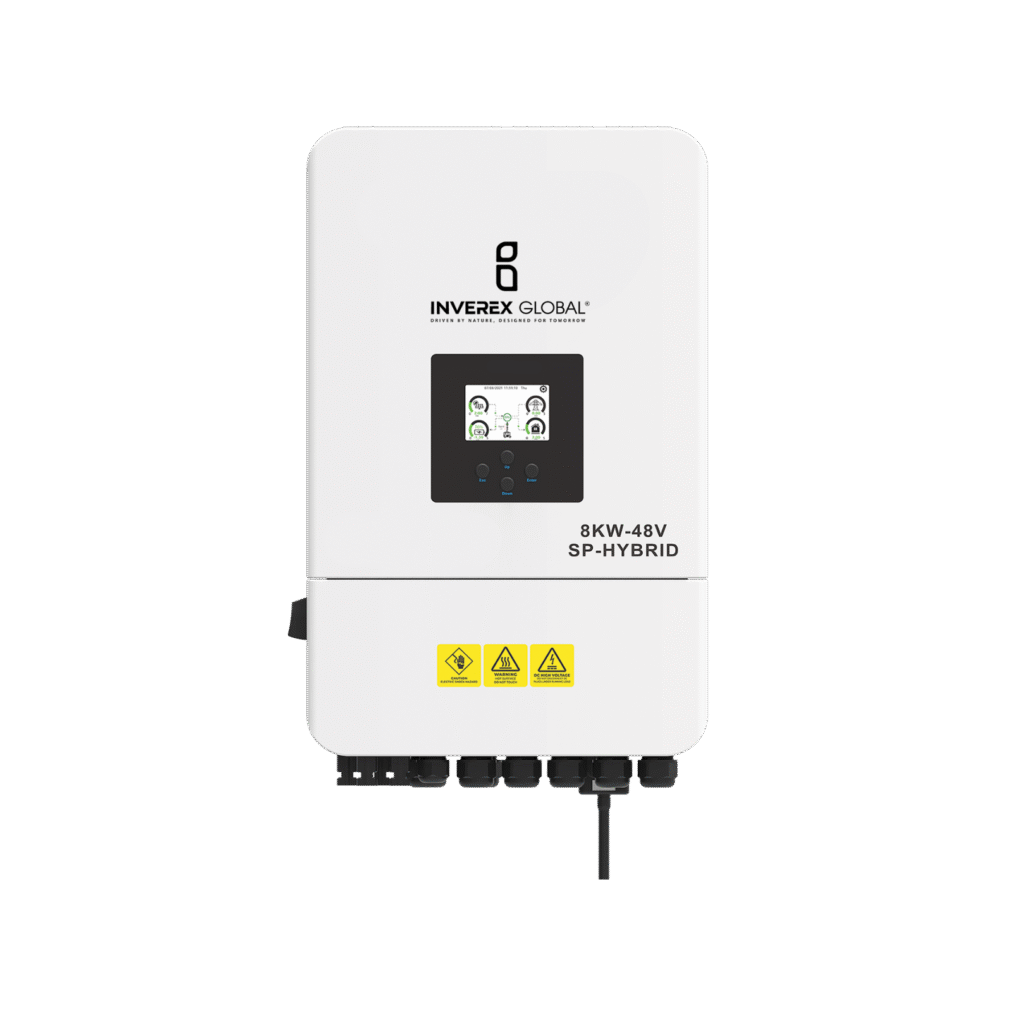

INVEREX GLOBAL – NITROX HYBRID (DEYE) MPPT INVERTER 8kw
A powerful 8kW single-phase hybrid inverter designed for large, energy-intensive homes. It supports modern high-voltage batteries (160-700V), features dual MPPTs for large solar arrays, and offers massive scalability with up to 16 units in parallel. A robust, IP65-rated inverter backed by a 10-year warranty.
Additional information
Description
Description
Inverex Nitrox 8kW High-Voltage Single-Phase Hybrid Inverter
The Inverex Nitrox 8kW is a powerhouse hybrid inverter that brings commercial-grade features to the residential market. Delivering a substantial 8kW of single-phase power, it’s perfectly suited for large homes with high energy consumption. Its ability to work with modern, high-voltage battery systems (160-700V) results in greater system efficiency and performance. With dual MPPTs designed to handle a large 8000W solar array and the incredible option to parallel up to 16 units, this inverter provides a truly scalable and future-proof foundation for complete energy independence. Encased in a rugged IP65 housing, the Nitrox 8kW is built to perform reliably for years, backed by a comprehensive 10-year warranty.
Key Features
- High-Power Single-Phase Output: A robust 8kW output designed to power large homes and demanding electrical loads with ease.
- High-Voltage Battery Ready: Optimized for modern, high-voltage battery systems (160-700V), ensuring higher efficiency and compatibility with the latest storage technology.
- Symmetrical Dual MPPTs: Features two independent MPPTs, each supporting two strings, ideal for maximizing energy harvest from large, uniform solar arrays.
- Massive Parallel Capability: Unmatched scalability allows you to connect up to 16 units in parallel, making it suitable for any future energy needs.
- Intelligent BMS Integration: Automatically adapts its charging strategy to compatible Lithium-Ion batteries for seamless, plug-and-play operation and optimal battery health.
- Built for Durability: The IP65 weatherproof enclosure provides superior protection against dust and moisture, making it ideal for both indoor and outdoor installations.
- 10-Year Peace of Mind: Your investment is protected by a full 10-year manufacturer warranty, guaranteeing a decade of reliable service.
Technical Specifications
| Model | IG-SP-8kW-48v HYBRID MPPT (DEYE) |
| Rated Power | 8kW |
| Phase | Single Phase |
| Battery Type / Voltage | Lead Acid or Li-Ion / 160V-700V |
| Number of Battery Inputs | 1 |
| MPPT Trackers / Strings | 2 / 2+2 |
| MPPT Voltage Range (VDC) | 150V – 850V |
| Max. PV Array Power | 8,000 W |
| Max. Parallel Capacity | 16 Units |
| Protection Degree | IP65 |
| Communication Interface | WIFI/RS485/CAN |
| Product Weight (kg) | 26.8 KG |
| Operating Temperature | -40°C to +60°C (>45°C Derating) |
| Warranty | 10 Years (T&C Applied) |
