INVEREX GLOBAL – YUKON II HYBRID MPPT INVERTER 3,5 kw
A high-efficiency 3.5kW hybrid solar inverter with a Power Factor of 1.0, ensuring maximum power delivery. This 24V unit handles a 4000W solar array and features a wide MPPT voltage range for flexible system design. An intelligent and powerful choice for residential solar, backed by a 5-year warranty.
Additional information
Description
Description

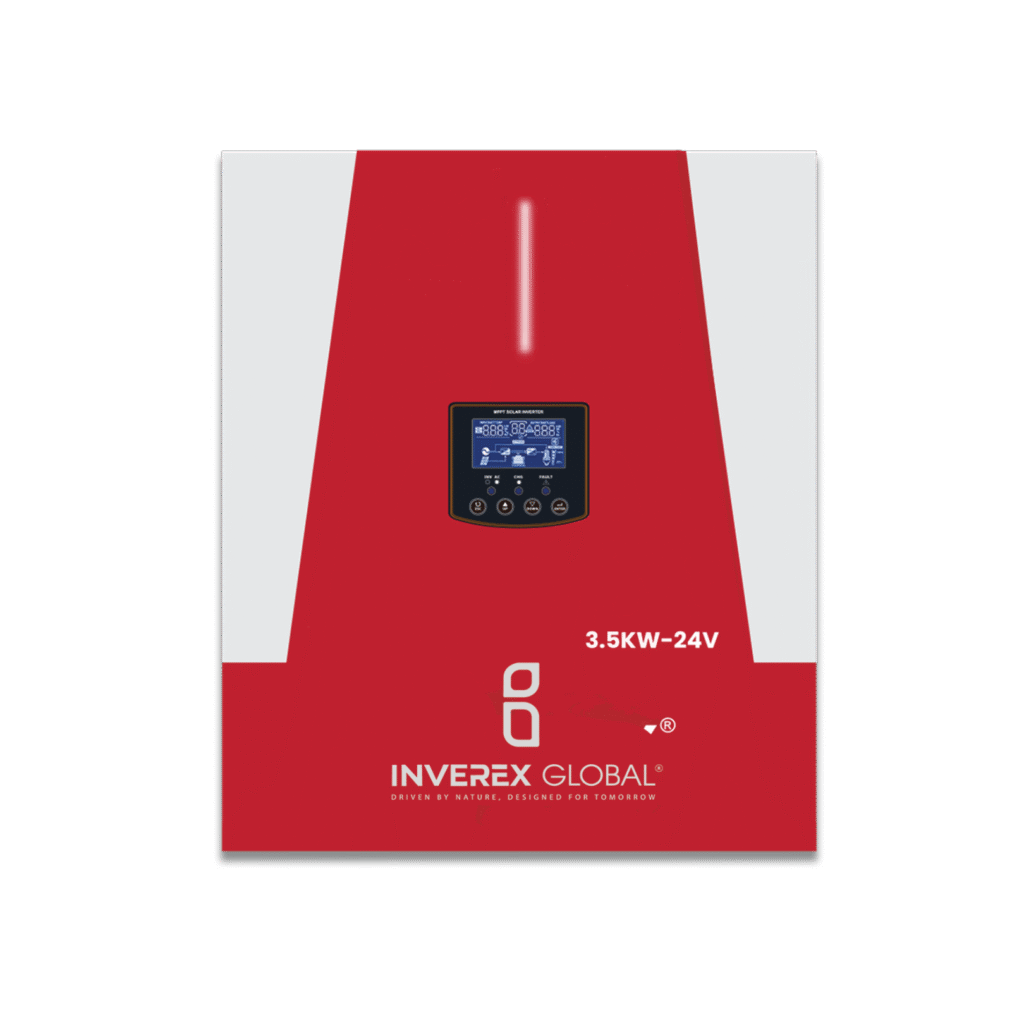

Inverex Yukon II 3.5kW Hybrid MPPT Solar Inverter
The Inverex Yukon II 3.5kW is a high-performance hybrid inverter engineered for superior efficiency and intelligent power management in residential solar systems. With a Power Factor of 1.0, it maximizes the conversion of your solar energy into usable power for your home. It features a very wide MPPT voltage range, allowing for greater flexibility in solar panel choice and string configuration. This inverter is designed for smart energy prioritization, enabling you to get the most from your solar investment. It is a reliable and powerful core for any modern home energy system.
Key Features
- Maximum Power Output: A Power Factor of 1.0 means the full 3.5kW rating is available for your appliances.
- High Efficiency MPPT: A wide 60V to 450V MPPT voltage range optimizes power harvesting from your solar array throughout the day.
- Substantial Solar Capacity: Supports up to 4000W of solar panels, ideal for significantly reducing your electricity bills.
- Smart Functionality: Enables intelligent prioritization between utility and solar power to maximize self-consumption.
- User-Friendly Monitoring: Comes with RS232 and USB ports for easy connection, monitoring, and troubleshooting.
Technical Specifications
| Model | IG 3.5kW-24v MPPT |
| Rated Power | 3.5kW |
| Battery Voltage | 24 VDC |
| MPPT Voltage Range (VDC) | 60V – 450V |
| Max. PV Array Power | 4000 W |
| Protection Degree | IP21 |
| Communication Interface | RS232/USB |
| Product Weight (kg) | 9 KG |
| Operating Temperature | 0°C to 55°C |
| Warranty | 5 Years (T&C Applied) |
